Virtual Background with Screensharing

Bodypix GPU accelerated virtual background with virtual screenshare

Advanced
Bitrate
Video Resolution (ideal)
Video Framerate (ideal)
Audio/Video Inputs
Video Input Source
Audio Input Source
Audio Output Source

Note: Not a live demo, server configuration is just for example. For live working example try the Millicast Publisher and Subscriber example. Or AWS Kinesis Publisher and Subscriber example.

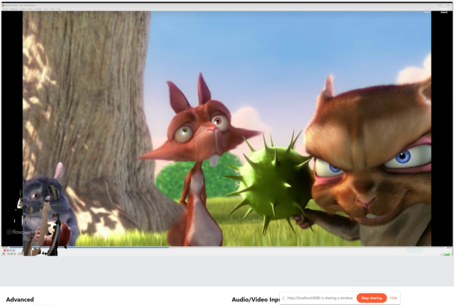

This example demonstrates dynamic virtual background removal using Bodypix and Tensorflow AI with screenshare switching. When switching to screenshare the screenshare video will be rendered as a GPU background texture, the video will be rendered in the foreground resized.

Backgrounds can be applied using CSS, and bgImage config on the publisher and subscriber. The video element needs to be shown or rendering stops.

#player.flowplayer.is-ready:not(.is-poster) {
    background-image: url(images/bbb.jpg) !important;
}

  <div>
          <div id="virtual-screen-background" class=""></div>
  </div>
  <script type="text/javascript">
  	var player = flowplayer("#virtual-screen-background", {
    "clip": {
        "live": true,
        "sources": [
            {
                "appName": "webrtc",
                "src": "myStream",
                "type": "application/webrtc"
            }
        ]
    },
    "rtc": {
        "applicationName": "webrtc",
        "autoStartDevice": true,
        "publisher": true,
        "server": "wowza",
        "serverURL": "rtc.electroteque.org",
        "toggleScreen": true,
        "userData": {
            "param1": "value1"
        },
        "virtual": {
            "bgImage": "../../images/virtualbg.jpg",
            "enable": true
        }
    },
    "share": false
});

player.on("devices", (event, devicesMap, deviceInfos) => {
//get available devices here for building your own UI
console.log("devices", devicesMap, deviceInfos);
}).on("initdevices", () => {
console.log("init devices");
}).on("mediastart", (e, info, deviceInfo, videoConstraints, capabilities) => {
//console.log("mediastart111", deviceInfo);
//selected device has been activated
console.log("Device Start ", info.deviceInfo);
console.log("Updated Device Info ", info.newDeviceInfo);
console.log("Video Constraints ", info.videoConstraints);
console.log("Capabilities ", info.capabilities);
}).on("mediastop", (e) => {
console.log("Device Stop");
}).on("devicesuccess", (e) => {
console.log("Device Permissions Success");
}).on("deviceerror", (e, error) => {
console.log("Device Error", error);
}).on("startpublish", (e, supportsParams) => {
console.log("Publishing Started");
//use this for enabling / disabling bandwidth select menus while publishing
//browsers that don"t support it cannot update bitrate controls while publishing
console.log("Browser Supports peer setParameters ", supportsParams);
}).on("stoppublish", (e) => {
console.log("Publishing Stopped");
}).on("recordstart", (e) => {
console.log("Recording Started");
}).on("recordstop", (e) => {
console.log("Recording Stopped");
}).on("sendmessage", (e, message) => {
console.log("Signal Server Send Message: ", message);
}).on("gotmessage", (e, message) => {
console.log("Signal Server Receive Message: ", message);
}).on("offer", (e, offer) => {
console.log("WebRTC Offer ", offer.sdp);
}).on("answer", (e, answer) => {
console.log("WebRTC Answer ", answer.sdp);
}).on("bitratechanged", (e, params) => {
console.log("WebRTC Bitrate Changed ", params);
}).on("outputsuccess", (e, sinkId) => {
console.log("Success, audio output device attached:" + sinkId);
}).on("outputerror", (e, message) => {
console.log(message);
}).on("ready", function(e, api, video) {
console.log("READY", video);
}).on("data", (e, data) => {
console.log("GOT DATA: ", data);
}).on("rtcerror", (e, error) => {
console.log("WebRTC Error ", error);
}).on("screensharestart", (e) => {
console.log("screen share started");
}).on("screensharestop", (e) => {
console.log("screen share stopped");
});
  </script>
